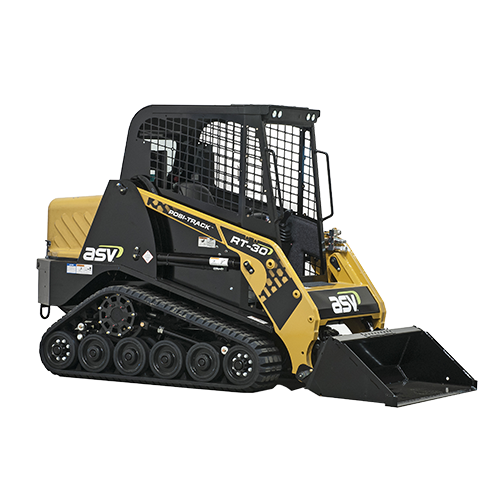

The ASV RT-30 is a Posi-Track loader manufactured by ASV. The RT30 loader features a 32.7 hp Perkins 403D-15 engine that gives it the power and reliability that you would expect from an ASV product. The ASV RT 30 features a radial lift design and has an operating weight of 3,600 lbs. A tipping load of 1,900 lbs gives it an operating capacity of 950 lbs at 50%. These machines feature a single-speed transmission with a ground speed up to 6.5 mph. The Posi-Track undercarriage features an 11 inch wide rubber track allowing the RT 30 a ground pressure of just 3.0 psi. The RT-30 offers more ground clearance (10 inches) than most other track loaders in its class. The RT30 also has a greater departure angle (55° degrees) that enables the units to push up on higher grades without bottoming out. This ASV has a low flow auxiliary hydraulic system that produces 10 gpm @ 3,000 psi.
