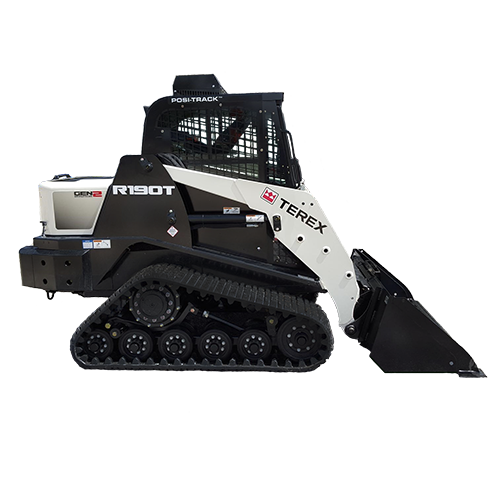

The Terex R190T is a white ASV Posi-Track loader produced under the brand name Terex. The R190T loader features a 60 hp Perkins 404D-22T engine that gives it the power and reliability that you would expect from an Terex product. The Terex R190T features a radial lift design and has an operating weight of 6,930 lbs. A tipping load of 5,430 lbs gives it an operating capacity of 2,715 lbs at 50%. These machines feature a 2-speed transmission with a ground speed up to 6 mph in low speed and 11 mph in high range. The ASV Posi-Track undercarriage features a 15 inch wide rubber track allowing the R190T a ground pressure of just 3.9 psi. The R190T offers more ground clearance (12 inches) than most other track loaders in its class. The R190T also has a greater departure angle (42° degrees) that enables the units to push up on higher grades without bottoming out. This Terex has a low flow auxiliary hydraulic system that produces 16.3 gpm @ 3,000 psi.
