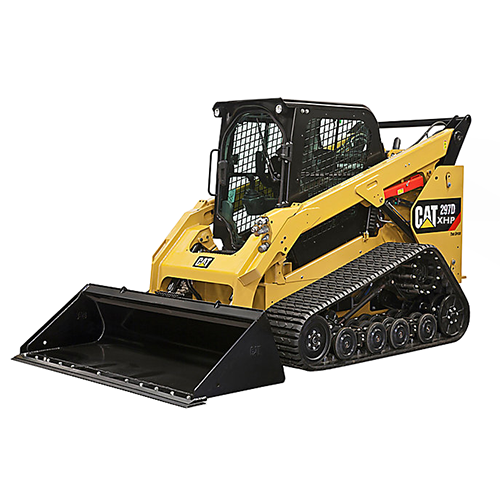

The Caterpillar 297-D-XHP is a multi-terrain loader produced with the ASV undercarriage. The 297D-XHP track loader features a 110 hp Caterpillar C3.8-DIT engine that gives it the power and reliability that you would expect of Caterpillar product. The Caterpillar 297 D XHP features a vertical lift design and has an operating weight of 10,918 lbs . A tipping load of 9,600 lbs, gives it an operating capacity at 50% of 4,800 lbs. These machines were produced from 2013 to 2018 and featured a 2-speed transmission with a ground speed up to 5.9 mph in low speed and 9.4 mph in high range. The ASV undercarriage features a 18 inch wide rubber track allowing the 297 D XHP a ground pressure of just 4.3 psi. This Caterpillar has a low flow auxiliary hydraulic system that produces 23 gpm @ 3,335 psi and a high flow option of 40 gpm @ 4,061 psi.
