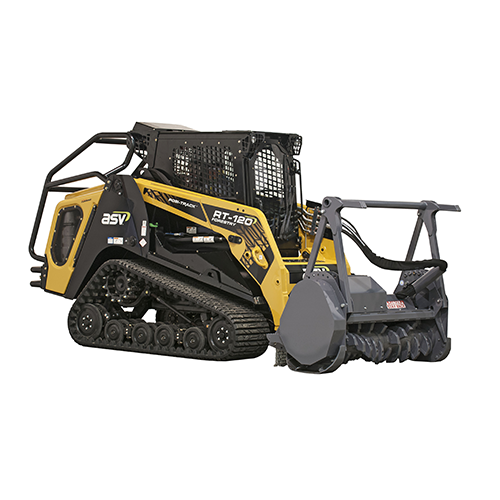

The ASV RT-120 is a Posi-Track loader manufactured by ASV. The RT120 loader features a 120 hp Cummins QSF3.8 engine that gives it the power and reliability that you would expect from an ASV product. The ASV RT 120 features a radial lift design and has an operating weight of 11,265 lbs. A tipping load of 10,100 lbs gives it an operating capacity of 5,050 lbs at 50%. These machines feature a 2-speed transmission with a ground speed up to 6 mph in low speed and 10 mph in high range. The Posi-Track undercarriage features an 18 inch wide rubber track allowing the RT 120 a ground pressure of just 4.4 psi. The RT-120 offers more ground clearance (15 inches) than most other track loaders in its class. The RT120 also has a greater departure angle (34° degrees) that enables the units to push up on higher grades without bottoming out. This ASV has a low flow auxiliary hydraulic system that produces 20 gpm @ 3,300 psi and a high flow option of 45 gpm @ 4,060 psi.
