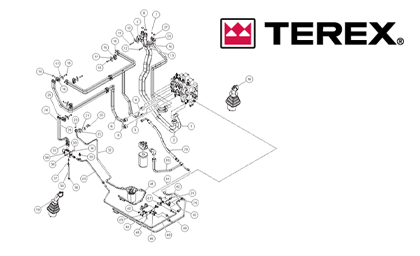

TSV90Return To Diagram

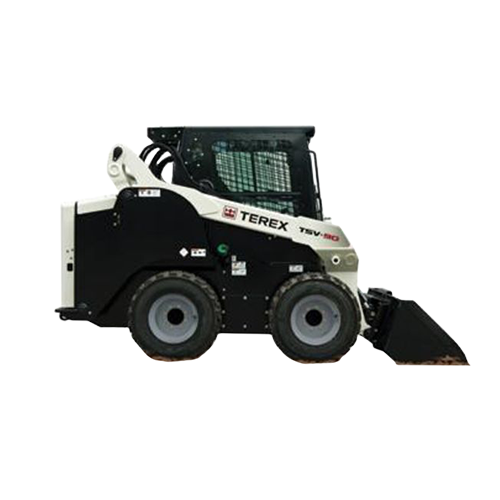

The Terex TSV-90 is not just a compact track loader with wheels, but instead was designed from the ground up as a skid steer loader. The machines share some of the time-proven powertrain, hydraulic and operator station components as their track loader counterparts but are purpose-designed as skid steer loaders for optimum balance and tipping load. The TSV90 skid steer features a 85hp Cummins QSB3.3 engine that gives it the power and reliability that you would expect of a Terex product. The Terex TSV 90 features a vertical lift design and has an operating weight of 8,680 lbs. A tipping load of 8,260 lbs gives it an operating capacity of 4,130 lbs at 50%. These machines feature a 2-speed (optional) transmission with a ground speed up to 8.5 mph in low speed and 12 mph in high range. The TSV-90 offers more ground clearance (10.5 inches) than most other skid steer loaders in its class. The TSV90 also has a greater departure angle (25.5ï¿½ï¿½ degrees) that enables the units to push up on higher grades without bottoming out. Arm lifting force (5540 lbs) and breakout force (5820 lbs) are also higher than most other competitive models. This Terex has a low flow auxiliary hydraulic system that produces 26 gpm @ 3,335 psi.
