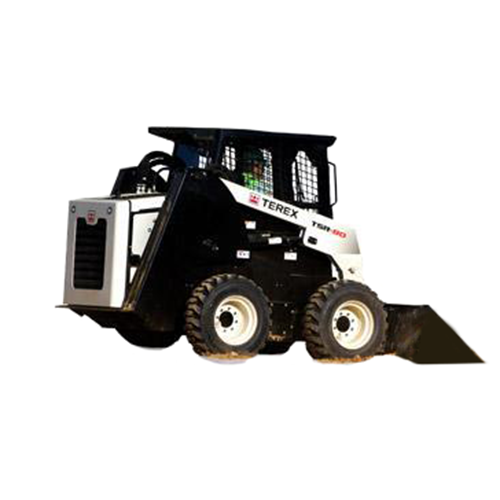

The Terex TSR-80 is not just a compact track loader with wheels, but instead was designed from the ground up as a skid steer loader. The machines share some of the time-proven powertrain, hydraulic and operator station components as their track loader counterparts but are purpose-designed as skid steer loaders for optimum balance and tipping load. The TSR80 skid steer features a 83hp Perkins 804D-33T engine that gives it the power and reliability that you would expect of a Terex product. The Terex TSR 80 features a radial lift design and has an operating weight of 7,750 lbs. A tipping load of 4,640 lbs gives it an operating capacity of 2,320 lbs at 50%. These machines feature a 2-speed (optional) transmission with a ground speed up to 8.5 mph in low speed and 12 mph in high range. The TSR-80 offers more ground clearance (10.5 inches) than most other skid steer loaders in its class. The TSR80 also has a greater departure angle (26ï¿½ï¿½ degrees) that enables the units to push up on higher grades without bottoming out. Arm lifting force (7000 lbs) and breakout force (5500 lbs) are also higher than most other competitive models. This Terex has a low flow auxiliary hydraulic system that produces 21 gpm @ 3,300 psi and a high flow option of 42 gpm @ 3,300 psi.
