TS50RReturn To Diagram

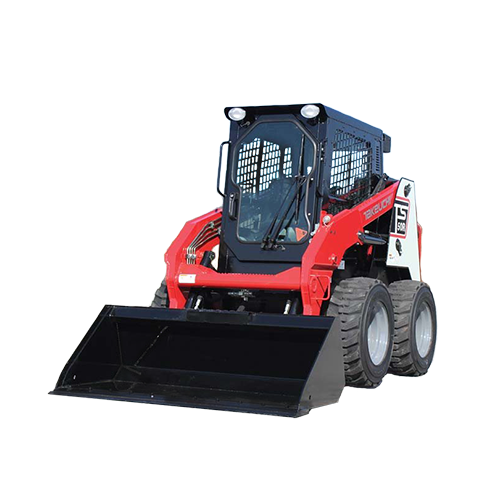

The Takeuchi TS-50R is not just a compact track loader with wheels, but instead was designed from the ground up as a skid steer loader. The machines share some of the time-proven powertrain, hydraulic and operator station components as their track loader counterparts but are purpose-designed as skid steer loaders for optimum balance and tipping load. The TS50R skid steer features a 50hp Perkins 404D-22 engine that gives it the power and reliability that you would expect of a Takeuchi product. The Takeuchi TS 50R features a radial lift design and has an operating weight of 6,475 lbs. A tipping load of 3,000 lbs gives it an operating capacity of 1,500 lbs at 50%. These machines feature a 2-speed (optional) transmission with a ground speed up to 8.2 mph in low speed and 11.7 mph in high range. The TS-50R offers more ground clearance (10.5 inches) than most other skid steer loaders in its class. The TS50R also has a greater departure angle (28° degrees) that enables the units to push up on higher grades without bottoming out. Arm lifting force (3000 lbs) and breakout force (3900 lbs) are also higher than most other competitive models. This Takeuchi has a low flow auxiliary hydraulic system that produces 17.1 gpm @ 3,335 psi.
