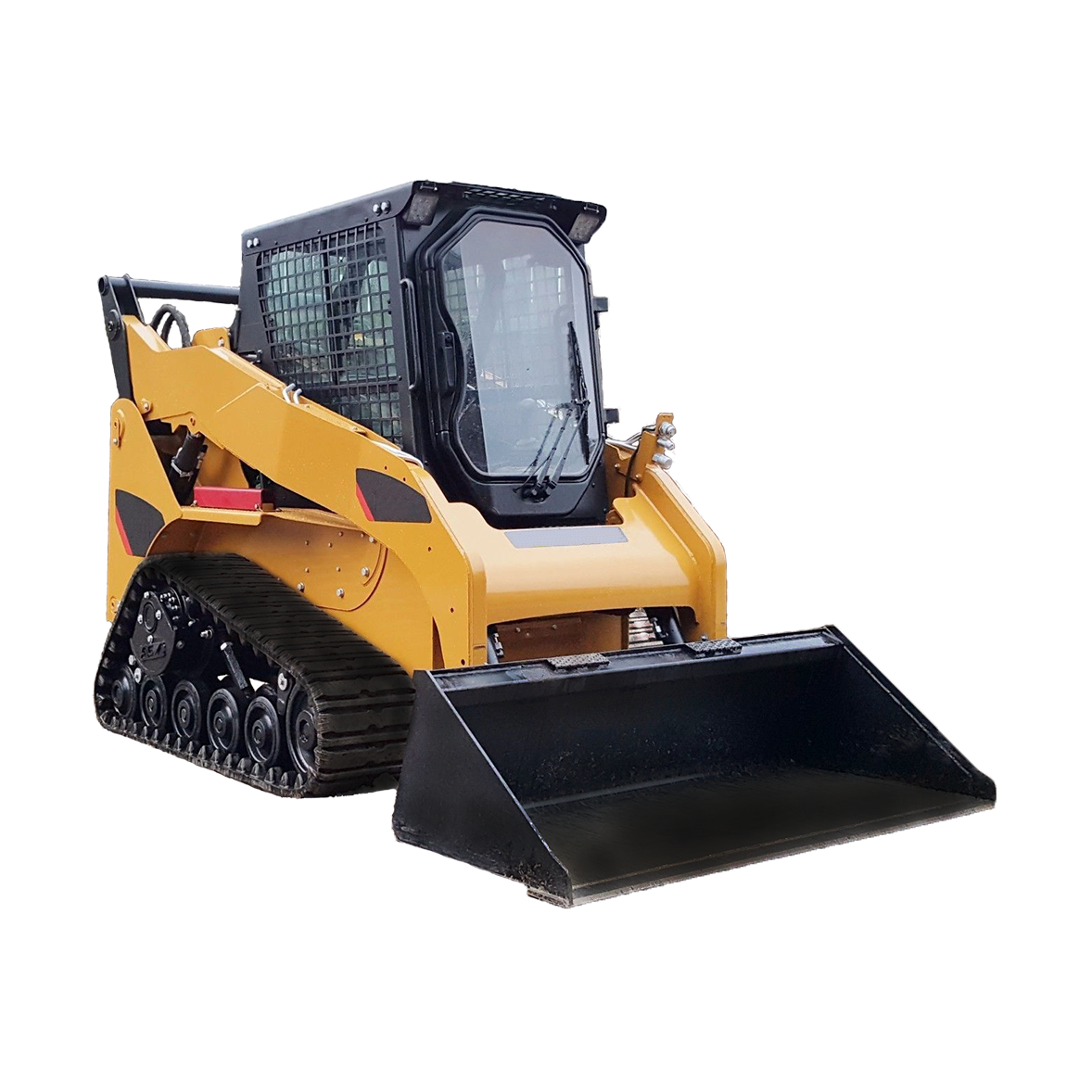

The Caterpillar 257-B is a multi-terrain loader produced with the ASV undercarriage. The 257B track loader features a 57 hp Caterpillar 3024C-T engine that gives it the power and reliability that you would expect of Caterpillar product. The Caterpillar 257 B features a vertical lift design and has an operating weight of 7,559 lbs . A tipping load of 4,620 lbs, gives it an operating capacity at 50% of 2,310 lbs. These machines were produced from 2004 to 2007 and featured a single-speed transmission with a ground speed up to 6.9 mph. The ASV undercarriage features a 15 inch wide rubber track allowing the 257 B a ground pressure of just 4.3 psi. This Caterpillar has a low flow auxiliary hydraulic system that produces 15.6 gpm @ 3,335 psi and a high flow option of 26 gpm @ 3,335 psi.
