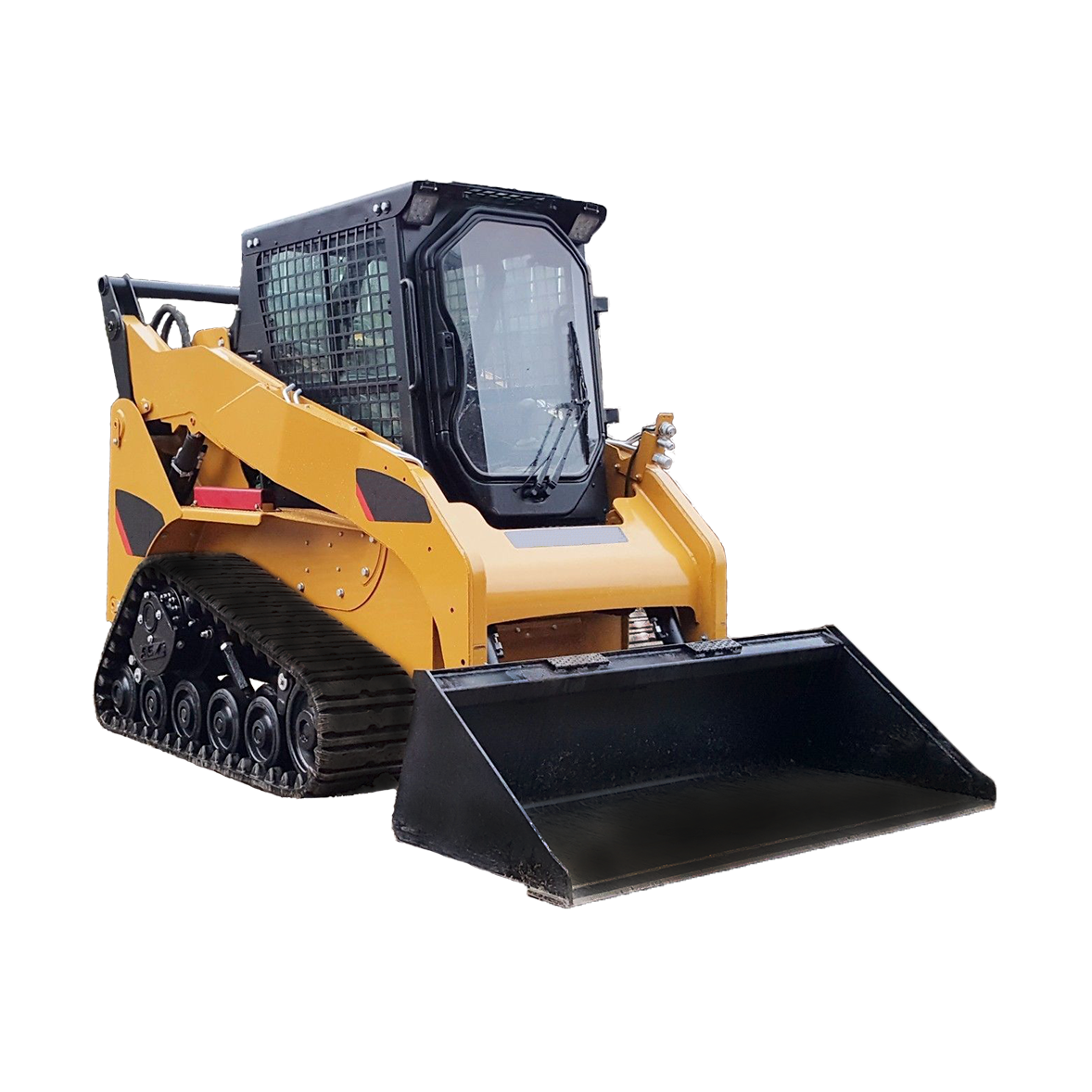

The Caterpillar 257-B3 is a multi-terrain loader produced with the ASV undercarriage. The 257B3 track loader features a 71 hp Caterpillar C3.4-DIT engine that gives it the power and reliability that you would expect of Caterpillar product. The Caterpillar 257 B3 features a vertical lift design and has an operating weight of 8,060 lbs . A tipping load of 5,350 lbs, gives it an operating capacity at 50% of 2,675 lbs. These machines were produced from 2010 to 2013 and featured a 2-speed transmission with a ground speed up to 6.9 mph in low speed and 10 mph in high range. The ASV undercarriage features a 15 inch wide rubber track allowing the 257 B3 a ground pressure of just 4.5 psi. This Caterpillar has a low flow auxiliary hydraulic system that produces 22 gpm @ 3,335 psi.
