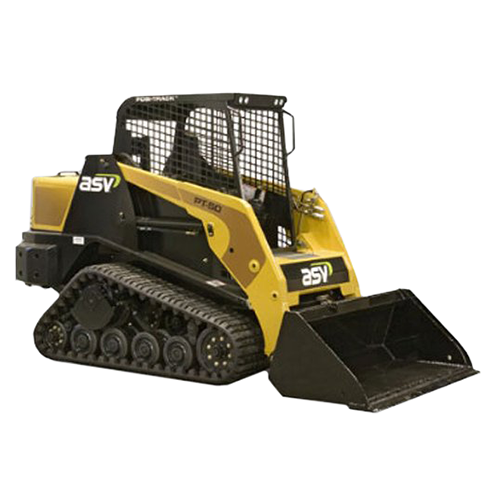

The ASV PT-50 is a Posi-Track loader manufactured by ASV. The PT50 loader features a 50 hp Perkins 404C-22 engine that gives it the power and reliability that you would expect from an ASV product. The ASV PT 50 features a radial lift design and has an operating weight of 6,200 lbs. A tipping load of 3,800 lbs gives it an operating capacity of 1,900 lbs at 50%. These machines feature a single-speed transmission with a ground speed up to 8 mph. The Posi-Track undercarriage features a 15 inch wide rubber track allowing the PT 50 a ground pressure of just 3.5 psi. The PT-50 offers more ground clearance (12 inches) than most other track loaders in its class. The PT50 also has a greater departure angle (42° degrees) that enables the units to push up on higher grades without bottoming out. This ASV has a low flow auxiliary hydraulic system that produces 16.3 gpm @ 3,000 psi.
