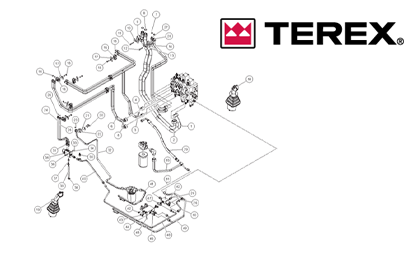

R350T ForestryReturn To Diagram

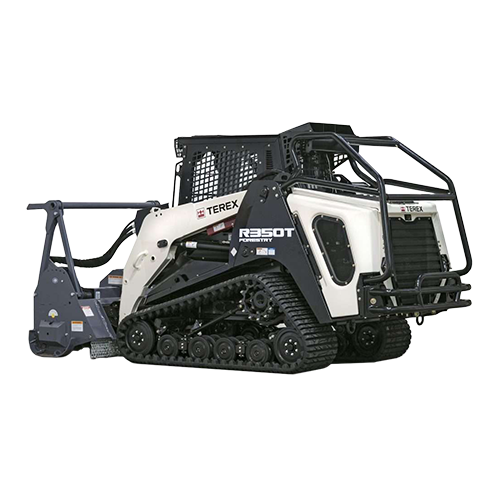

The Terex R350T Forestry is a white ASV Posi-Track loader produced under the brand name Terex. The R350T Forestry loader features a 120 hp Cummins QSF3.8 engine that gives it the power and reliability that you would expect from an Terex product. The Terex R350T Forestry features a radial lift design and has an operating weight of 12,255 lbs. A tipping load of 10,700 lbs gives it an operating capacity of 5,350 lbs at 50%. These machines feature a 2-speed transmission with a ground speed up to 6 mph in low speed and 10 mph in high range. The ASV Posi-Track undercarriage features a 20 inch wide rubber track allowing the R350T Forestry a ground pressure of just 4.3 psi. The R350T Forestry offers more ground clearance (15 inches) than most other track loaders in its class. The R350T Forestry also has a greater departure angle (29° degrees) that enables the units to push up on higher grades without bottoming out. This Terex has a low flow auxiliary hydraulic system that produces 20 gpm @ 3,300 psi and a high flow option of 45 gpm @ 4,060 psi.
