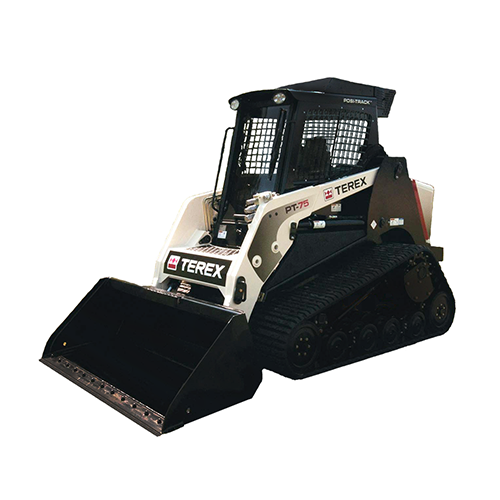

The Terex PT-75 is a white ASV Posi-Track loader produced under the brand name Terex. The PT75 loader features a 71 hp Perkins 804C-33T engine that gives it the power and reliability that you would expect from an Terex product. The Terex PT 75 features a radial lift design and has an operating weight of 8,972 lbs. A tipping load of 6,200 lbs gives it an operating capacity of 3,100 lbs at 50%. These machines feature a 2-speed transmission with a ground speed up to 5.5 mph in low speed and 10.5 mph in high range. The Posi-Track undercarriage features an 18 inch wide rubber track allowing the PT 75 a ground pressure of just 3.5 psi. The PT-75 offers more ground clearance (15 inches) than most other track loaders in its class. The PT75 also has a greater departure angle (45° degrees) that enables the units to push up on higher grades without bottoming out. This Terex has a low flow auxiliary hydraulic system that produces 17.4 gpm @ 3,000 psi and a high flow option of 30 gpm @ 3,000 psi.
