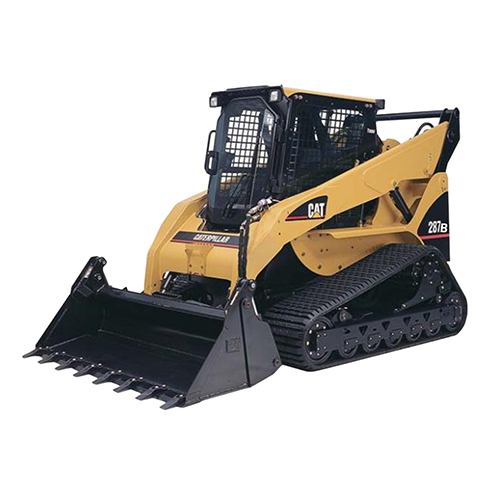

The Caterpillar 287-B is a multi-terrain loader produced with the ASV undercarriage. The 287B track loader features a 76 hp Caterpillar 3044C-DIT engine that gives it the power and reliability that you would expect of Caterpillar product. The Caterpillar 287 B features a vertical lift design and has an operating weight of 10,275 lbs . A tipping load of 7,200 lbs, gives it an operating capacity at 50% of 3,600 lbs. These machines were produced from 2004 to 2007 and featured a single-speed transmission with a ground speed up to 7 mph. The ASV undercarriage features a 18 inch wide rubber track allowing the 287 B a ground pressure of just 3.8 psi. This Caterpillar has a low flow auxiliary hydraulic system that produces 22 gpm @ 3,335 psi and a high flow option of 33 gpm @ 4,060 psi.
