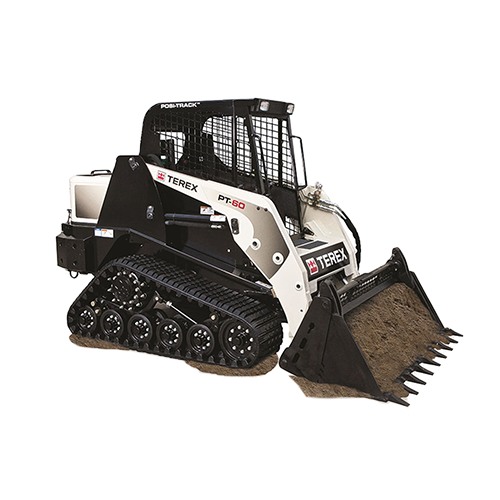

The ASV PT-60 is a Posi-Track loader manufactured by ASV. The PT60 loader features a 60 hp Perkins 404C-22T engine that gives it the power and reliability that you would expect from an ASV product. The ASV PT 60 features a radial lift design and has an operating weight of 6,350 lbs. A tipping load of 3,800 lbs gives it an operating capacity of 1,900 lbs at 50%. These machines feature a 2-speed transmission with a ground speed up to 6 mph in low speed and 11 mph in high range. The Posi-Track undercarriage features a 15 inch wide rubber track allowing the PT 60 a ground pressure of just 3.6 psi. The PT-60 offers more ground clearance (12 inches) than most other track loaders in its class. The PT60 also has a greater departure angle (42° degrees) that enables the units to push up on higher grades without bottoming out. This ASV has a low flow auxiliary hydraulic system that produces 17.4 gpm @ 3,000 psi.
PT60
