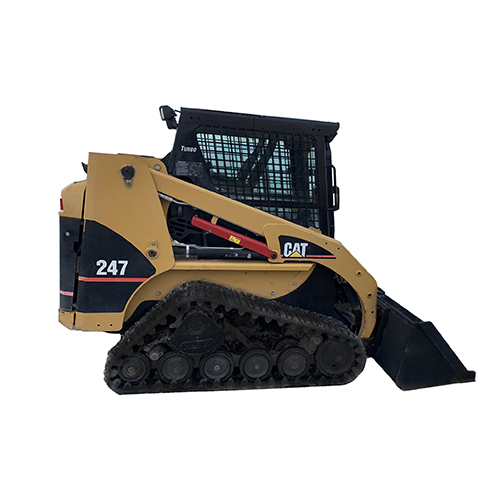

The Caterpillar 247 is a multi-terrain loader produced with the ASV undercarriage. The 247 track loader features a 54 hp Caterpillar 3034 engine that gives it the power and reliability that you would expect of Caterpillar product. The Caterpillar 247 features a radial lift design and has an operating weight of 6,665 lbs . A tipping load of 3,860 lbs, gives it an operating capacity at 50% of 1,930 lbs. These machines were produced from 2002 to 2004 and featured a single-speed transmission with a ground speed up to 7.5 mph. The ASV undercarriage features a 15 inch wide rubber track allowing the 247 a ground pressure of just 3.8 psi. This Caterpillar has a low flow auxiliary hydraulic system that produces 14.4 gpm @ 3,300 psi.
