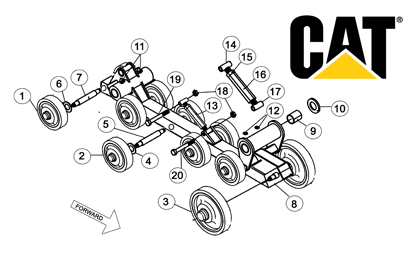

277DReturn To Diagram

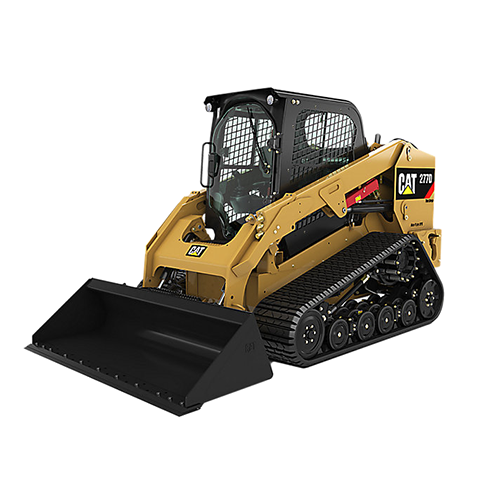

The Caterpillar 277-D is a multi-terrain loader produced with the ASV undercarriage. The 277D track loader features a 73.2 hp Caterpillar C3.3B-DIT engine that gives it the power and reliability that you would expect of Caterpillar product. The Caterpillar 277 D features a radial lift design and has an operating weight of 9,293 lbs . A tipping load of 6,580 lbs, gives it an operating capacity at 50% of 3,290 lbs. These machines were produced from 2014 to 2018 and featured a 2-speed transmission with a ground speed up to 6 mph in low speed and 9.4 mph in high range. The ASV undercarriage features a 18 inch wide rubber track allowing the 277 D a ground pressure of just 3.6 psi. This Caterpillar has a low flow auxiliary hydraulic system that produces 23 gpm @ 3,335 psi and a high flow option of 32 gpm @ 4,061 psi.
