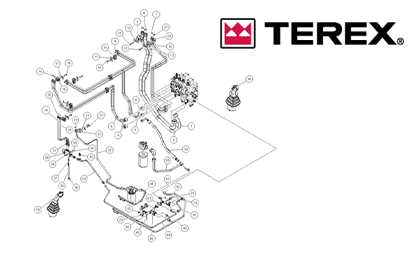

R260SReturn To Diagram

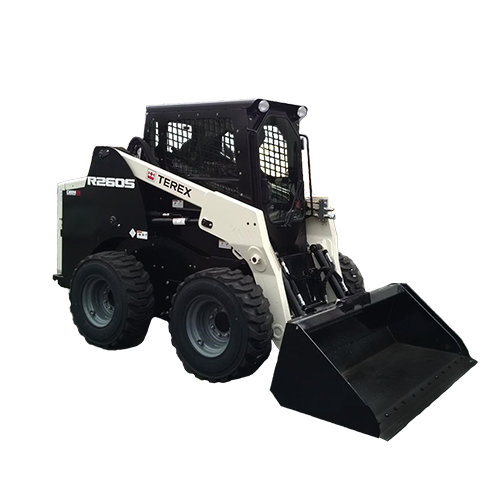

The Terex R260S is not just a compact track loader with wheels, but instead was designed from the ground up as a skid steer loader. The machines share some of the time-proven powertrain, hydraulic and operator station components as their track loader counterparts but are purpose-designed as skid steer loaders for optimum balance and tipping load. The R260S skid steer features a 74hp Deutz TD2.9L4 engine that gives it the power and reliability that you would expect of a Terex product. The Terex R260S features a radial lift design and has an operating weight of 7,425 lbs. A tipping load of 5,200 lbs gives it an operating capacity of 2,600 lbs at 50%. These machines feature a 2-speed (optional) transmission with a ground speed up to 8.2 mph in low speed and 11 mph in high range. The R260S offers more ground clearance (10.5 inches) than most other skid steer loaders in its class. The R260S also has a greater departure angle (24ï¿½ï¿½ degrees) that enables the units to push up on higher grades without bottoming out. Arm lifting force (7100 lbs) and breakout force (5845 lbs) are also higher than most other competitive models. This Terex has a low flow auxiliary hydraulic system that produces 21.5 gpm @ 3,335 psi.
