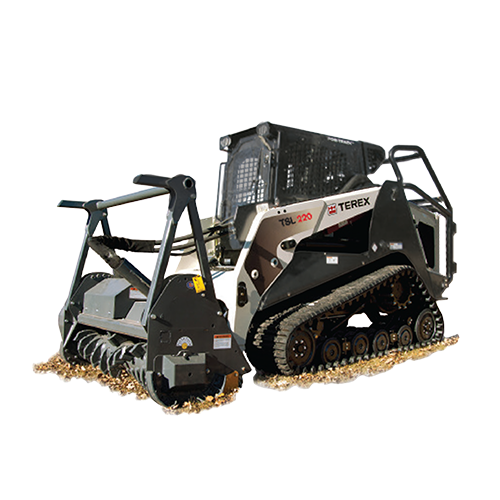

The Terex TSL-220 is an ASV Posi-Track loader produced for the Environmental products division of Terex. The TSL220 loader features a 111 hp Perkins 854E-E34TA engine that gives it the power and reliability that you would expect from an Terex product. The Terex TSL 220 features a radial lift design and has an operating weight of 12,100 lbs. A tipping load of 8,600 lbs gives it an operating capacity of 4,300 lbs at 50%. These machines feature a 2-speed transmission with a ground speed up to 6 mph in low speed and 10 mph in high range. The ASV Posi-Track undercarriage features a 20 inch wide rubber track allowing the TSL 220 a ground pressure of just 4.25 psi. The TSL-220 offers more ground clearance (14.75 inches) than most other track loaders in its class. The TSL220 also has a greater departure angle (35.5° degrees) that enables the units to push up on higher grades without bottoming out. Arm lifting force (6750 lbs) and breakout force (5750 lbs) are also higher than most other competitive models. This Terex has a low flow auxiliary hydraulic system that produces 20 gpm @ 3,300 psi and a high flow option of 45 gpm @ 3,800 psi.
