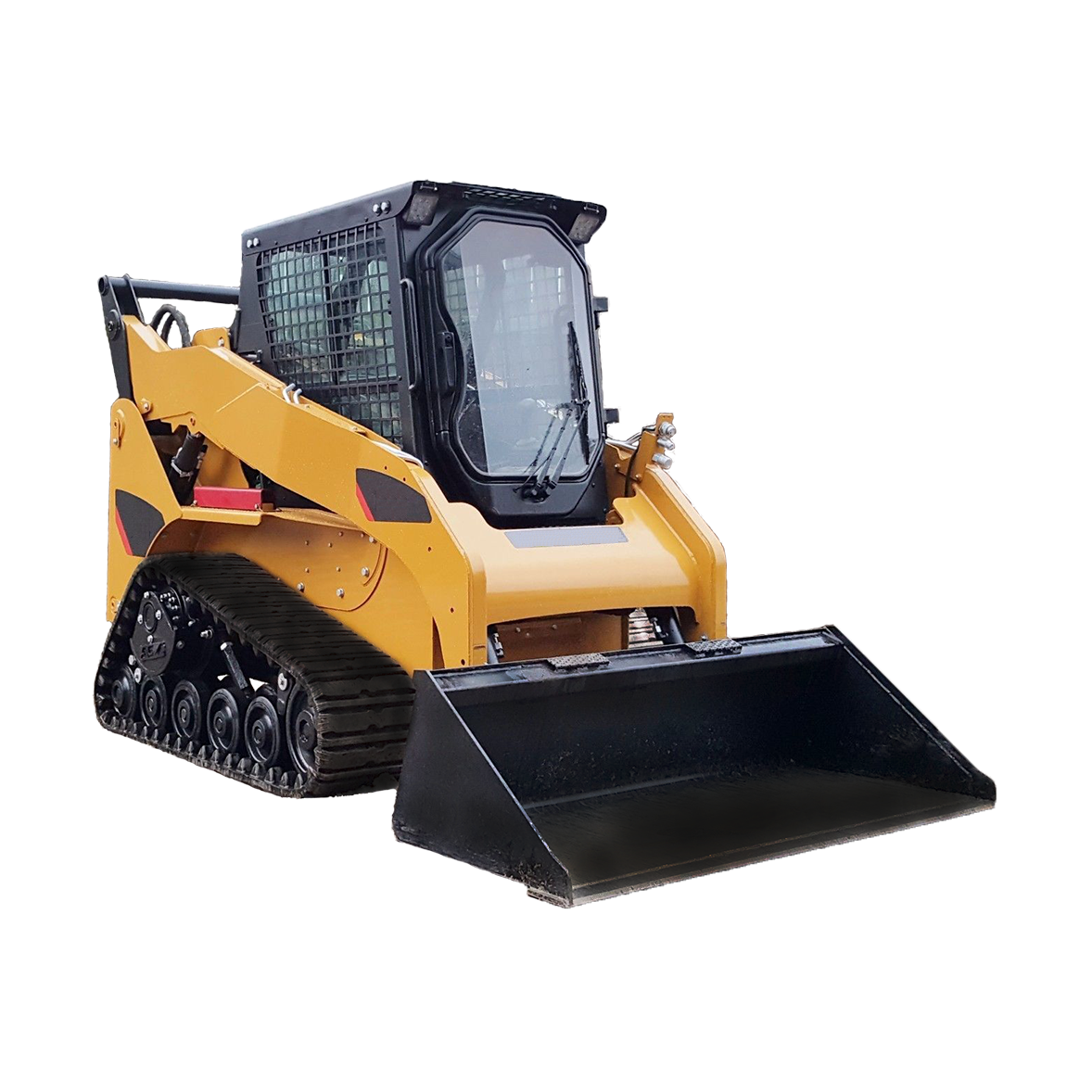

The Caterpillar 257-B2 is a multi-terrain loader produced with the ASV undercarriage. The 257B2 track loader features a 56 hp Caterpillar C2.2T engine that gives it the power and reliability that you would expect of Caterpillar product. The Caterpillar 257 B2 features a vertical lift design and has an operating weight of 8,611 lbs . A tipping load of 5,000 lbs, gives it an operating capacity at 50% of 2,500 lbs. These machines were produced from 2007 to 2010 and featured a single-speed transmission with a ground speed up to 7 mph. The ASV undercarriage features a 15 inch wide rubber track allowing the 257 B2 a ground pressure of just 4.5 psi. This Caterpillar has a low flow auxiliary hydraulic system that produces 15.9 gpm @ 3,335 psi.
