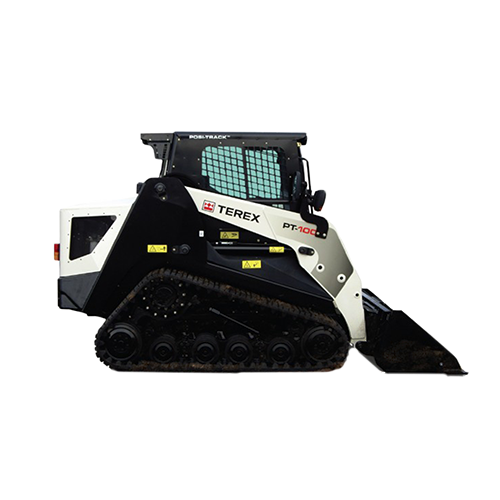

The ASV PT-100 is a Posi-Track loader manufactured by ASV. The PT100 loader features a 99.5 hp Perkins 1104C-44T engine that gives it the power and reliability that you would expect from an ASV product. The ASV PT 100 features a radial lift design and has an operating weight of 10,150 lbs. A tipping load of 7,600 lbs gives it an operating capacity of 3,800 lbs at 50%. These machines feature a 2-speed transmission with a ground speed up to 6 mph in low speed and 11.5 mph in high range. The Posi-Track undercarriage features an 18 inch wide rubber track allowing the PT 100 a ground pressure of just 3.8 psi. The PT-100 offers more ground clearance (14 inches) than most other track loaders in its class. The PT100 also has a greater departure angle (40° degrees) that enables the units to push up on higher grades without bottoming out. This ASV has a low flow auxiliary hydraulic system that produces 20 gpm @ 3,300 psi and a high flow option of 38 gpm @ 3,300 psi.
