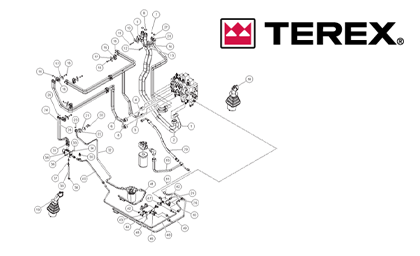

R070TReturn To Diagram

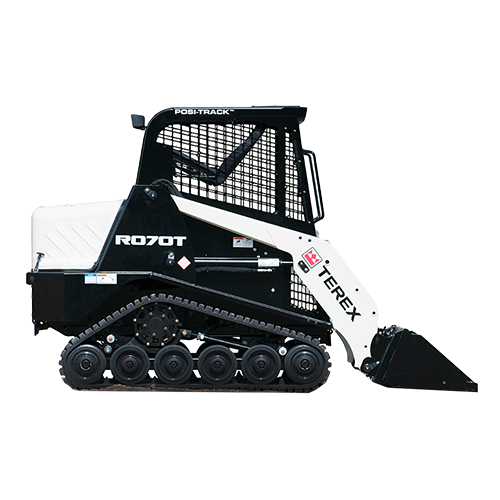

The Terex R070T is a white ASV Posi-Track loader produced under the brand name Terex. The R070T loader features a 32.7 hp Perkins 403D-15 engine that gives it the power and reliability that you would expect from an Terex product. The Terex R070T features a radial lift design and has an operating weight of 3,600 lbs. A tipping load of 1,900 lbs gives it an operating capacity of 950 lbs at 50%. These machines feature a single-speed transmission with a ground speed up to 6.5 mph. The Posi-Track undercarriage features an 11 inch wide rubber track allowing the R070T a ground pressure of just 3.0 psi. The R070T offers more ground clearance (10 inches) than most other track loaders in its class. The R070T also has a greater departure angle (55° degrees) that enables the units to push up on higher grades without bottoming out. This Terex has a low flow auxiliary hydraulic system that produces 10 gpm @ 3,000 psi.
