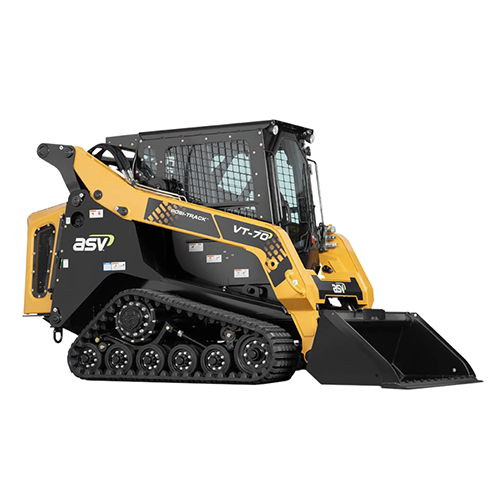

The ASV VT70 is a Posi-Track loader manufactured by ASV. The VT70 loader features a 65 hp Kubota V2403-CR-TIE4 engine that gives it the power and reliability that you would expect from an ASV product. The ASV VT70 features a vertical lift design and has an operating weight of 8,060 lbs. A tipping load of 6,650 lbs gives it an operating capacity of 3,325 lbs at 50%. These machines feature a 2-speed transmission with a ground speed up to 7.7 mph in low speed and 11 mph in high range. The Posi-Track undercarriage features a 15 inch wide rubber track allowing the VT70 a ground pressure of just 4.6 psi. The VT70 offers more ground clearance (13 inches) than most other track loaders in its class. The VT70 also has a greater departure angle (37° degrees) that enables the units to push up on higher grades without bottoming out. This ASV has a low flow auxiliary hydraulic system that produces 23 gpm @ 3,300 psi and a high flow option of 28.4 gpm @ 3,300 psi.
