RS75Return To Diagram

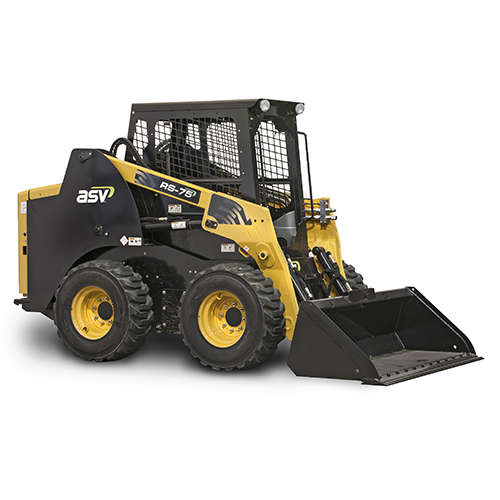

The ASV RS-75 is not just a compact track loader with wheels, but instead was designed from the ground up as a skid steer loader. The machines share some of the time-proven powertrain, hydraulic and operator station components as their track loader counterparts but are purpose-designed as skid steer loaders for optimum balance and tipping load. The RS75 skid steer features a 74hp Deutz TD2.9L4 engine that gives it the power and reliability that you would expect of an ASV product. The ASV RS 75 features a radial lift design and has an operating weight of 7,425 lbs. A tipping load of 5,200 lbs gives it an operating capacity of 2,600 lbs at 50%. These machines feature a 2-speed transmission with a ground speed up to 8.2 mph in low speed and 11 mph in high range. The RS-75 offers more ground clearance (10.5 inches) than most other skid steer loaders in its class. The RS75 also has a greater departure angle (24° degrees) that enables the units to push up on higher grades without bottoming out. This ASV has a low flow auxiliary hydraulic system that produces 21.97 gpm @ 3,335 psi and a high flow option of 30.9 gpm @ 3,335 psi.
