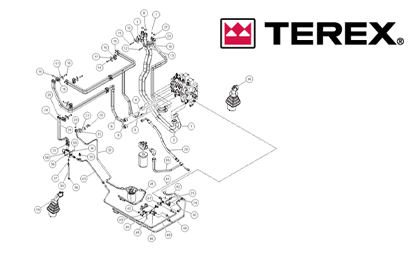

R185SReturn To Diagram
The Terex R185S is not just a compact track loader with wheels, but instead was designed from the ground up as a skid steer loader. The machines share some of the time-proven powertrain, hydraulic and operator station components as their track loader counterparts but are purpose-designed as skid steer loaders for optimum balance and tipping load. The R185S skid steer features a 50hp Perkins 404D-22 engine that gives it the power and reliability that you would expect of a Terex product. The Terex R185S features a radial lift design and has an operating weight of 6,365 lbs. A tipping load of 3,700 lbs gives it an operating capacity of 1,850 lbs at 50%. These machines feature a 2-speed (optional) transmission with a ground speed up to 7.4 mph in low speed and 12 mph in high range. The R185S offers more ground clearance (10.5 inches) than most other skid steer loaders in its class. The R185S also has a greater departure angle (28.3ï¿½ï¿½ degrees) that enables the units to push up on higher grades without bottoming out. Arm lifting force (4750 lbs) and breakout force (4750 lbs) are also higher than most other competitive models. This Terex has a low flow auxiliary hydraulic system that produces 17.1 gpm @ 3,335 psi.
