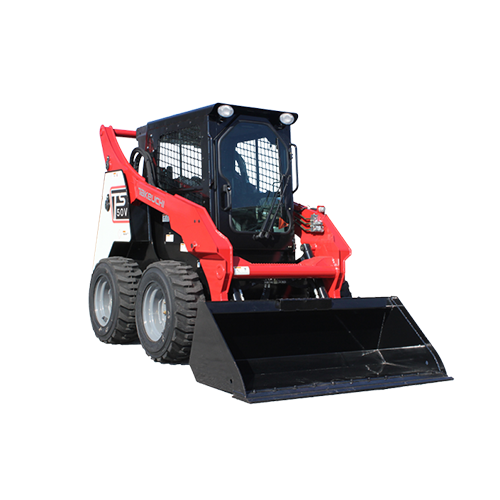

The Takeuchi TS-50V is not just a compact track loader with wheels, but instead was designed from the ground up as a skid steer loader. The machines share some of the time-proven powertrain, hydraulic and operator station components as their track loader counterparts but are purpose-designed as skid steer loaders for optimum balance and tipping load. The TS50V skid steer features a 50hp Perkins 404D-22 engine that gives it the power and reliability that you would expect of a Takeuchi product. The Takeuchi TS 50V features a vertical lift design and has an operating weight of 6,981 lbs. A tipping load of 4,000 lbs gives it an operating capacity of 2,000 lbs at 50%. These machines feature a 2-speed (optional) transmission with a ground speed up to 8.2 mph in low speed and 11.7 mph in high range. The TS-50V offers more ground clearance (10.5 inches) than most other skid steer loaders in its class. The TS50V also has a greater departure angle (28° degrees) that enables the units to push up on higher grades without bottoming out. Arm lifting force (3675 lbs) and breakout force (4130 lbs) are also higher than most other competitive models. This Takeuchi has a low flow auxiliary hydraulic system that produces 17.1 gpm @ 3,335 psi.
