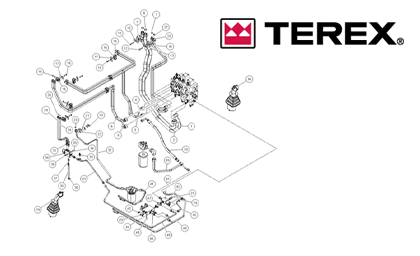

R265TReturn To Diagram

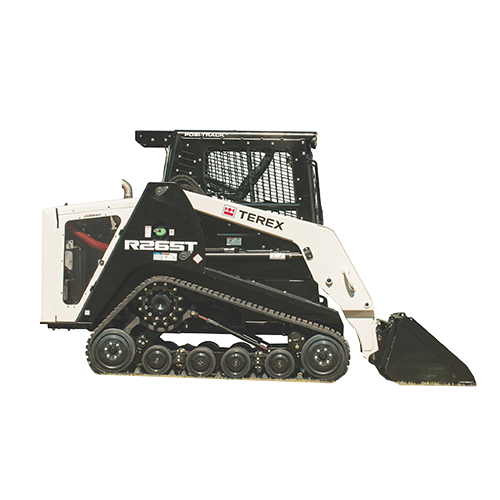

The Terex R265T is a white ASV Posi-Track loader produced under the brand name Terex. The R265T loader features a 74 hp Cummins QSF2.8 engine that gives it the power and reliability that you would expect from an Terex product. The Terex R265T features a radial lift design and has an operating weight of 9,180 lbs. A tipping load of 7,571 lbs gives it an operating capacity of 3,786 lbs at 50%. These machines feature a 2-speed transmission with a ground speed up to 6.3 mph in low speed and 9.3 mph in high range. The Posi-Track undercarriage features an 18 inch wide rubber track allowing the R265T a ground pressure of just 3.6 psi. The R265T offers more ground clearance (14.4 inches) than most other track loaders in its class. The R265T also has a greater departure angle (38° degrees) that enables the units to push up on higher grades without bottoming out. This Terex has a low flow auxiliary hydraulic system that produces 22.6 gpm @ 3,300 psi and a high flow option of 35.7 gpm @ 3,300 psi.
