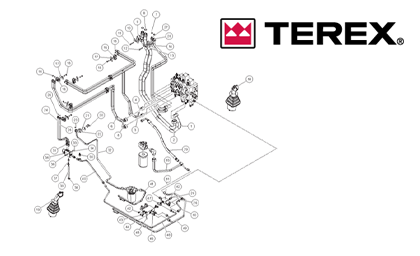

PT110Return To Diagram
The Terex PT-110 is a white ASV Posi-Track loader produced under the brand name Terex. The PT110 loader features a 111 hp Perkins 854E-E34TA engine that gives it the power and reliability that you would expect from an Terex product. The Terex PT 110 features a radial lift design and has an operating weight of 11,100 lbs. A tipping load of 7,600 lbs gives it an operating capacity of 3,800 lbs at 50%. These machines feature a 2-speed transmission with a ground speed up to 6 mph in low speed and 10 mph in high range. The Posi-Track undercarriage features an 18 inch wide rubber track allowing the PT 110 a ground pressure of just 4.3 psi. The PT-110 offers more ground clearance (14.75 inches) than most other track loaders in its class. The PT110 also has a greater departure angle (39° degrees) that enables the units to push up on higher grades without bottoming out. Arm lifting force (6750 lbs) and breakout force (5750 lbs) are also higher than most other competitive models. This Terex has a low flow auxiliary hydraulic system that produces 20 gpm @ 3,300 psi and a high flow option of 45 gpm @ 3,800 psi.
