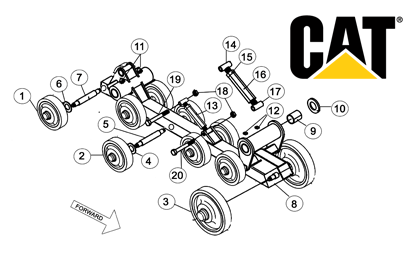

277C2Return To Diagram
The Caterpillar 277-C2 is a multi-terrain loader produced with the ASV undercarriage. The 277C2 track loader features a 75 hp Caterpillar C3.4-DIT engine that gives it the power and reliability that you would expect of Caterpillar product. The Caterpillar 277 C2 features a radial lift design and has an operating weight of 9,495 lbs . A tipping load of 6,400 lbs, gives it an operating capacity at 50% of 3,200 lbs. These machines were produced from 2012 to 2013 and featured a 2-speed transmission with a ground speed up to 5.6 mph in low speed and 9.2 mph in high range. The ASV undercarriage features a 18 inch wide rubber track allowing the 277 C2 a ground pressure of just 3.6 psi. This Caterpillar has a low flow auxiliary hydraulic system that produces 22 gpm @ 3,335 psi and a high flow option of 33 gpm @ 4,061 psi.
