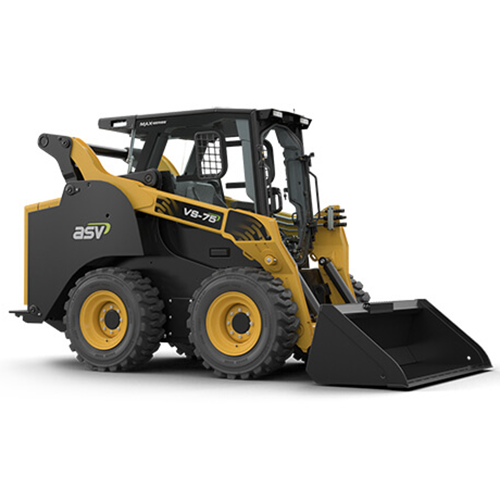

The ASV VS-75 is not just a compact track loader with wheels, but instead was designed from the ground up as a skid steer loader. The machines share some of the time-proven powertrain, hydraulic and operator station components as their track loader counterparts but are purpose-designed as skid steer loaders for optimum balance and tipping load. The VS75 skid steer features a 74hp Deutz TD2.9L4 engine that gives it the power and reliability that you would expect of an ASV product. The ASV VS 75 features a vertical lift design and has an operating weight of 8,740 lbs. A tipping load of 7,000 lbs gives it an operating capacity of 3,500 lbs at 50%. These machines feature a 2-speed (optional) transmission with a ground speed up to 8.2 mph in low speed and 11 mph in high range. The VS-75 offers more ground clearance (10.5 inches) than most other skid steer loaders in its class. The VS75 also has a greater departure angle (24° degrees) that enables the units to push up on higher grades without bottoming out. Arm lifting force (6325 lbs) and breakout force (5920 lbs) are also higher than most other competitive models. This ASV has a low flow auxiliary hydraulic system that produces 26 gpm @ 3,335 psi and a high flow option of 30.9 gpm @ 3,335 psi.
VS75 Max
