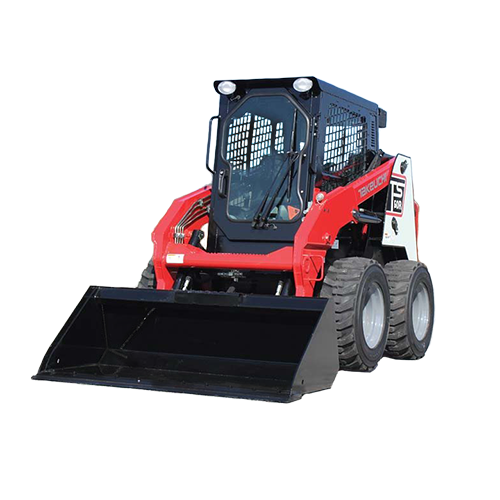

The Takeuchi TS-60R is not just a compact track loader with wheels, but instead was designed from the ground up as a skid steer loader. The machines share some of the time-proven powertrain, hydraulic and operator station components as their track loader counterparts but are purpose-designed as skid steer loaders for optimum balance and tipping load. The TS60R skid steer features a 60hp Perkins 404D-22T engine that gives it the power and reliability that you would expect of a Takeuchi product. The Takeuchi TS 60R features a radial lift design and has an operating weight of 6,480 lbs. A tipping load of 3,000 lbs gives it an operating capacity of 1,500 lbs at 50%. These machines feature a 2-speed (optional) transmission with a ground speed up to 8.2 mph in low speed and 11.7 mph in high range. The TS-60R offers more ground clearance (10.5 inches) than most other skid steer loaders in its class. The TS60R also has a greater departure angle (28° degrees) that enables the units to push up on higher grades without bottoming out. Arm lifting force (3000 lbs) and breakout force (3900 lbs) are also higher than most other competitive models. This Takeuchi has a low flow auxiliary hydraulic system that produces 17.1 gpm @ 3,335 psi.
