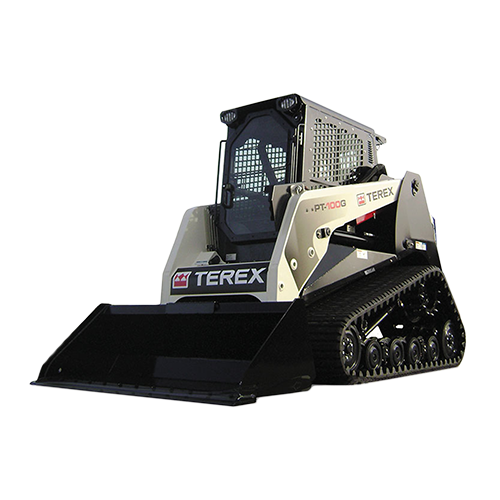

The Terex PT-100G is a white ASV Posi-Track loader produced under the brand name Terex. The PT100G loader features a 99.9 hp Perkins 1104D-44T engine that gives it the power and reliability that you would expect from an Terex product. The Terex PT 100G features a radial lift design and has an operating weight of 11,295 lbs. A tipping load of 8,000 lbs gives it an operating capacity of 4,000 lbs at 50%. These machines feature a 2-speed transmission with a ground speed up to 6 mph in low speed and 10 mph in high range. The Posi-Track undercarriage features an 18 inch wide rubber track allowing the PT 100G a ground pressure of just 4.5 psi. The PT-100G offers more ground clearance (14.75 inches) than most other track loaders in its class. The PT100G also has a greater departure angle (43° degrees) that enables the units to push up on higher grades without bottoming out. This Terex has a low flow auxiliary hydraulic system that produces 20 gpm @ 3,300 psi and a high flow option of 45 gpm @ 3,800 psi.
