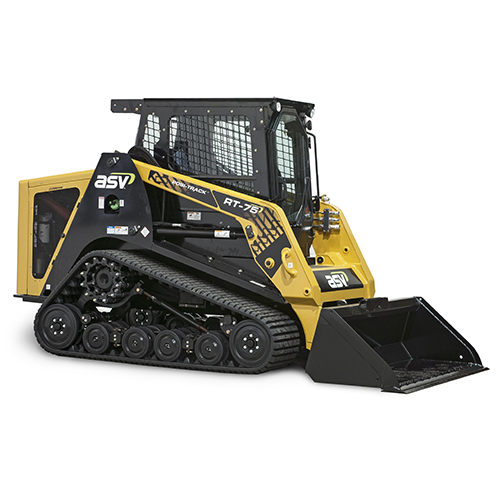

The ASV RT-75 is a Posi-Track loader manufactured by ASV. The RT75 loader features a 74 hp Cummins QSF2.8 engine that gives it the power and reliability that you would expect from an ASV product. The ASV RT 75 features a radial lift design and has an operating weight of 9,180 lbs. A tipping load of 7,571 lbs gives it an operating capacity of 3,786 lbs at 50%. These machines feature a 2-speed transmission with a ground speed up to 6.3 mph in low speed and 9.3 mph in high range. The Posi-Track undercarriage features an 18 inch wide rubber track allowing the RT 75 a ground pressure of just 3.6 psi. The RT-75 offers more ground clearance (14.4 inches) than most other track loaders in its class. The RT75 also has a greater departure angle (38° degrees) that enables the units to push up on higher grades without bottoming out. This ASV has a low flow auxiliary hydraulic system that produces 22.6 gpm @ 3,300 psi and a high flow option of 35.7 gpm @ 3,300 psi.
